Piston Type Multi-function Pump Control Valve

Product overview

Product model: XYLDS101/201X
Nominal diameter: DN50~1400mm
Nominal pressure: PN1.0~2.5MPa
Applicable medium: water
Applicable temperature: 0~80℃
Connection type: flange connection
Structure length standard: GB/T12221
Connection flange standard: GB/T 9113
Pressure and temperature grade: GB/T12224
Test inspection standard: GB/T 13927

Piston Type Multi-function Pump Control Valve product details

XYLDS101/201X Piston Type Multi-function Pump Control Valve product description

XYLDS101/201X Piston Type Multi-function Pump Control Valve produced and sold by Baigang valve group is installed on the large-diameter water supply pipe network at the pump outlet, to prevent media backflow, water hammer and water hammer phenomenon intelligent valve. The valve combines electric valve, check valve and water hammer eliminator three functions, which can effectively improve the water supply system safety and reliability. Double-chamber, double-disc construction allows the valve to quickly shut off 90% after the pump has been stopped (prevents reverse flow from causing the pump to reverse) and then slowly shut off the remaining 10% (destructive water hammer) Piston Valves Reliable, high strength , Smooth action, to prevent the pump water hammer and water pump stop the occasion. Just operate the pump motor hoist button, the valve can be automatically opened and closed in accordance with the pump operating procedures, flow, pressure loss.

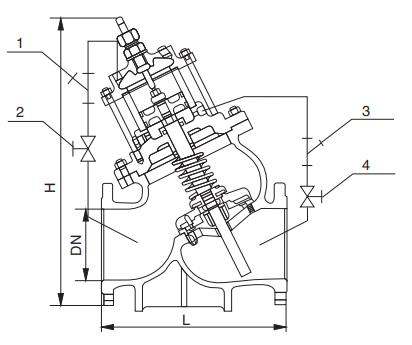

XYLDS101/201X Piston Type Multi-function Pump Control Valve main form of connection size

DN 50 65 80 100 125 150 200 250 300 350 400 450 500 700 800 900 1000 1200 1400
L 205 216 250 320 365 415 500 605 698 787 914 978 978 1300 1450 1650 1800 2000 2350
H 293 328 364 418 481 543 673 729 927 957 1188 1218 1600 2000 2300 2600 2700 2860 3200


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the Piston Type Multi-function Pump Control Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
